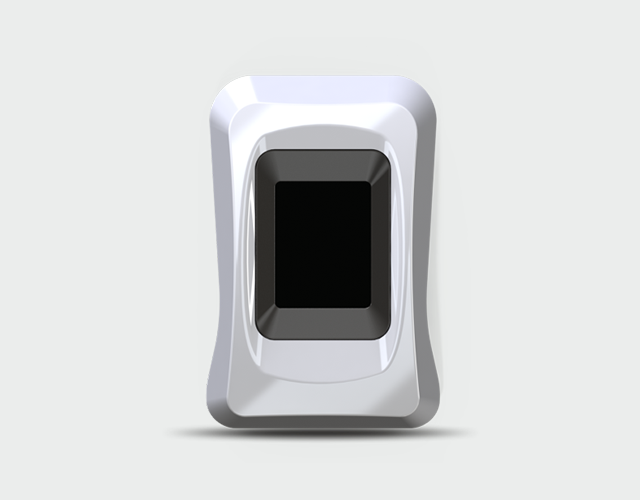

FINGERPRINT MODULE
This Fingerprint Module offers highly accurate and convenient fingerprint sensing solutions, elevating security standards. Powered by FAP10/20 optical/ Thermal technology-based fingerprint scanner, it is ideal for seamless integration into applications requiring user-friendly authentication, identification, and verification.
Built on a patented Active Thermal principle, the module meets FBI image quality standards and complies with PIV specifications (PIV-071006). Its versatile applications span e-governance, BFSI, and telecom sectors, making it a reliable and efficient solution for modern biometric needs.
Highly accurate and convenient fingerprint sensor solutions to an even higher level of security. Based on FAP 10/ 20 fingerprint sensor ideally suited for integration into a broad range of applications for reliable and user-friendly authentication, identification and verification. Building on the patented and proven Active Thermal principle. The module meets FBI image quality standards and complies with PIV requirements specified by PIV-071006.
OPERATING SYSTEM
Android, Windows
SENSORS
FAP 10/20 Scratch free Optical/ Thermal Sensor FBI PIV IQS Certified
IMAGE RESOLUTION
500 DPI
IMAGE CAPTURE AREA
312 mm2
SCANNER OUTPUT IMAGE SIZE/NATIVE
400 x 300 Pixels
GREY LEVEL
256
SCANNER INTERFACE CABLE
High speed USB 2.0 interface
POWER SUPPLY
5V, 500mA (USB Powered Device)
STANDBY
200 uA, Operating current : <60 mA
DIMENSION
61(L) x 41 (W) x 14 (H) mm
WEIGHT
<40g
OPERATING TEMPERATURE
Oto 50 °C
INDICATION
Red LED for Scanning
TEMPLATE SUPPORTED
ISO 19794-2 for minutiae &
ISO 19794-4 for Image
CERTIFICATIONS
EMI/EMC, Safety Certificate & Environmental Certificate.
E-Governance
BFSI
Telecom
