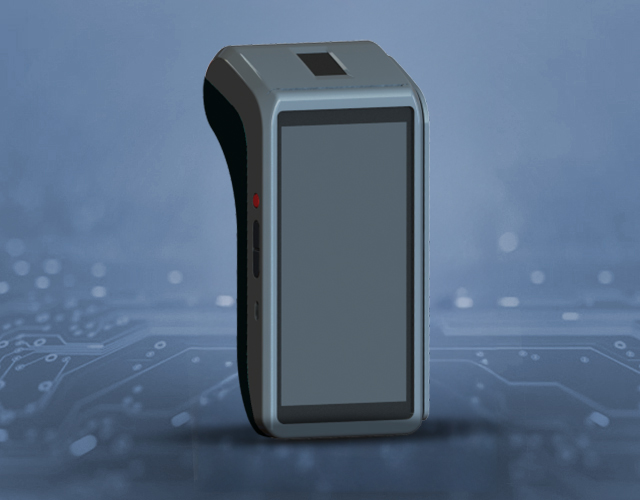

Smart Bio-POS
Compact, secure, and powerful, this smart bio-POS terminal delivers seamless payment experiences. From NFC to QR code payments, its Android-powered platform ensures versatility and ease of use. FAP10/20 optical and thermal technology based integrated Fingerprint scanner. Option to provide ISO19794-2/4 FMR and FIR data for the application requirements. Perfect for industries like telecom, retail, and BFSI, it combines portability with robust security standards.
- Support all payments, magnetic cards, IC cards, NFC, 1D/2D scan codes.
- Excellent configuration, large lithium battery, 4G/WIFI/ BT.
- Android System can support variety of industry applications.
- Safe & Reliable PCI, PTS, Rupay QSPARC, JCB, Discover & EMV.
- Innovative design and stylish
. - Easy to carry, Easy to operate, Easy to maintain, Secure and Intelligent.
OPERATING SYSTEM
Android 13 (Secure OS)
PROCESSOR
Application Processor: 64-bit Quad-Core Cortex A53 2.0 GHz
MEMORY
8 GB Flash + 1 GB RAM, 16GB Flash + 2GB RAM, 32GB Flash + 3 GB Ram, 64/128 GB Flash + 4 GB RAM (Optional
CARD READERS
MSR: 1507810-7813, 3 Tracks IC Card: 1507816
NFC READER
13.56MHz, ISO/IEC14443 Type A&B
FINGERPRINT SENSOR
Optical Finger Print Sensor supports ISO 19794-2/4 or ANSI/INCITS 378 template formats, 500 dpi FBI PIV IQS certified & STQC certified
CAMERA
Front-facing camera: 0.3 MP, Fixed focal (optional) Rear camera: 5 MP, Auto Zoom
DISPLAY
5.5" IPS Screen, 1280x720
HD Capacitive Multi-Point Touch Panel
SUPPORTED SOFTWARE
MDM, TMS, L3 Application
WIRELESS COMMUNICATION
4G(L TE) I 3G (WCDMA) I 2G(GPRS) I Wi-Fi 2.4GHz & 5GHz, 802.11a/b/g/n/ac, BLE 5.0
BATTERY
Removable Lithium polymer battery, 3.7V /5600 mAh
PRINTER
Print Speed: 2" Fast printing, Speed: 30 lines/s
Paper Roll: 58* 40mm
CARD SLOTS
SIM Card X 2 + PSAM X 1 or SIM Card X 1 + PSAM X 2
POSITIONING
GPS/GLONASS/BeiDou (optional)
KEYPAD
Power button, hotkeys, Volume button+/-
AUDIO
1 Buzzer, 1 Speaker (optional)
PORTS
1 Type-C USB OTG, 3.5mm Headphone Jack
INDICATOR LIGHTS
1 Power indicator light, 4 Work indicator lights
ADAPTOR
Input: AC 100-240V, 50/60Hz Output: 5V /2A
SCANNING CHARGING BASE
Equipped with a base for easy scanning and Charging (optional)
WEIGHT
440g
DIMENSIONS
192.7(L) x 85(W) x 63.4(H) mm
ENVIRONMENT
Storage Temperature: 20°C to 60°C
Operating temperature: 10°C to 50°C
Humidity: :;;; 95%
CERTIFICATIONS
EMV Contact L1, EMV Contact L2, EMV Contactless L1, Amex, Visa pay Wave, Mastercard Paypass, PCI PTS 6.x, TQM, CE, Rupay Qspark, JCB, EMI / EMC, Drop test and IP5x
