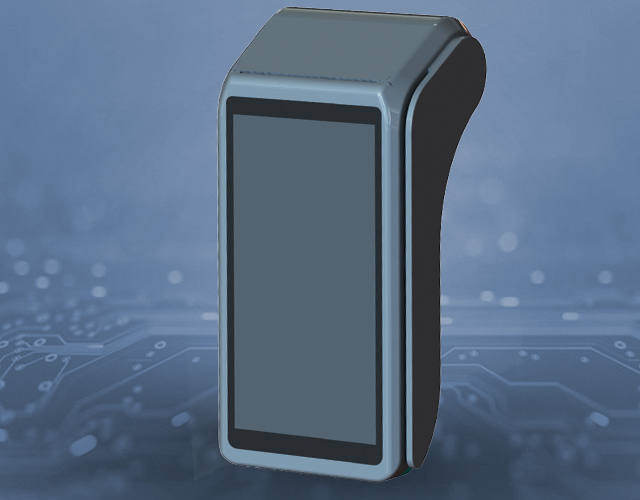

SMART POS
Smart POS is a next-generation point-of-sale terminal designed to redefine convenience, security, and efficiency in payment transactions. Engineered to support multiple payment methods—including magnetic stripe cards, chip-based IC cards, contactless NFC, and QR codes (1D/2D)—this versatile device ensures seamless transactions across industries.
Compact and lightweight, the Smart POS is easy to carry and operate, delivering a powerful and reliable solution for businesses seeking to enhance customer experiences and streamline operations.
- Support all payment, magnetic card, IC card, NFC, 1D/2D scan code.
- Excellent configuration, large lithium battery, 4G/WIFI/ BT
- Android System can support variety of industry application
- Safe & reliable, PCI, PTS, UnionPay, EMV.
- Innovation design, stylish appearance.
- Easy to carry, Easy to operate, Easy to maintain, Secure and Intelligent
PROCESSOR
Application Processor: 64-bit Quad-Core Cortex A53 1.4 GHz
MEMORY
8 GB Flash + 1 GB RAM, 16GB Flash + 2GB RAM,
32GB Flash + 3 GB Ram, 64/128 GB Flash +
4 GB RAM (Option
CARD READERS
MSR: ISO7810-7813, 3 Tracks IC Card: ISO7816
NFC READER
13.56MHz, ISO/IEC14443 Type A & B
CAMERA
Front-facing camera: 0.3 MP, Fixed focal (optional) Rear camera: 5 MP, Auto Zoom
DISPLAY
5.5" IPS Screen, 1280x720
HD Capacitive Multi-Point Touch Panel
SUPPORTED SOFTWARE
MDM, TMS, L3 Application
WIRELESS COMMUNICATION
Wi-Fi (2.4G) I 4G I 3G (WCDMA) I 2G (GPRS) I Bluetooth 4.2
BATTERY
Removable Lithium polymer battery, 3.7V /5200 mAh
PRINTER
Print Speed: 2" Fast printing, Speed: 30 lines Paper Roll: 58* 40mm
CARD SLOTS
SIM Card X 2 + PSAM X 1 or SIM Card X 1 + PSAM X 2
POSITIONING
GPS/GLONASS
KEYPAD
Power button, hotkeys, Volume button+/-
AUDIO
1 Buzzer
1 Speaker (optional)
PORTS
1 Type-C USB OTG 11 DC Power Jack
INDICATOR LIGHTS
1 Power indicator light I 4 Work indicator lights
ADAPTOR
Input: AC 100-240V, 50/60Hz
Output: 5V /2A
SCANNING CHARGING BASE
Equipped with a base for easy scanning and Charging (optional)
WEIGHT
440g
DIMENSIONS
192.7(L) x 85(W) x 63.4(H) mm
ENVIRONMENT
Storage Temperature: 20°c to 60°C
Operating temperature: 10° c to 50°C
Humidity: 95%
CERTIFICATIONS
EMV Contact Ll/EMV Contact L2/ EMV Contactless Ll/Amex, Visa pay Wave/Mastercard Paypass PCI PTS 6.x, TQM, CE, BIS, EMI, EMC, WPC, Drop test and IP5x
